G3 B&W 450MHz OS 9.2.? ATI Radeon 7000 PCI 64MB Video Card Mac Edition (has the S Video out) Installed in the 66 PCI slot.

Just bought this G3. I'm using an Apple ACD LCD 23' connected to the DVI port. The monitor works fine with my G5. On boot with an HD I had that apparenly has 9.2.? Installed on it the monitor has 3 quick flashes and goes black after showing the 9.2 splash screen with an inch of colored verticle lines on the far right.

Zapping the Pram results in the same 3 flashes after the splash screen. Tried to boot off a 10.4 install disk with the C key down with just a blank screen (black, nothing).

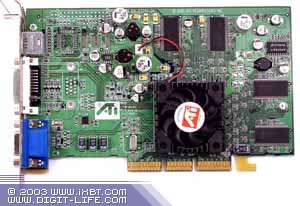

Ati 32mb Radeon 7500 Driver For Mac Mac

Tried booting with the option key down: Same blank screen. Any help greatly appreciated. Forgot to mention: if you opt to go with the Radeon 9200, there was a glitch somewhere between ATI video drivers pre-installed with the OS and the R9200 that only affected OS9. We had to complete remove all prior ATI extensions from teh OS9 system folder, then reinstall them from the CD that came with the 9200, before the card would work in OS9. No such issues with OSX, however.

I have a Beige G3 that started with its built-in Rage Pro with 6MB VRAM, then got an ATI Rage Orion 16MB card. Later I scored an original Radeon ME 32MB card (much faster than the later 7000).

It finally ended up with the R9200 128MB card. The latter was pretty neat but did not support Quartz Extreme under OSX, meaing 3D performance was smokin' but simple 2D things like dragging a window were choppy. ' I'm going to lay the motherboard and all components out on a desk and use an OCZ ATX power supply I have.

However when I first got the G3 and it wouldn't power on. I plugged the OCZ into the motherboard and HD. It still would not power on.' Although the B&W G3's power supply looks identical to an ATX supply, there is an important difference. On an ATX P-S, pin #18 provides -5v, whereas pin #18 on the G3's power supply is a ground. Those who wanted something more powerful than the Apple/OEM 200w power supply often installed an ATX P-S and either modified the existing wiring harness (cutting conductor #18 about 3' from the connector and looping it around to splice to another ground), or did the same mod to an ATX P-S extension cable. The latter method keeps from voiding the warranty on a new power supply.

Additionally, the large chassis fan needs to have its small connector adapted to fit an unused molex power connector on the ATX P-S. I used a small connector with twin leads removed from a PC's front panel power or reset switch, which I plugged the fan into, then spliced the two wires into a molex connector.

As for third-party replacement optical drives: I upgraded one of my B&W G3s with an LG DVD±RW drive, but it wouldn't boot from installer disks - either from a keyboard shortcut or by changing the startup disk via the control panel. It would spin up and down - then again, as if the disk were a foreign object it had never seen before, but this took so long that the computer finally booted from the hard drive instead. When the initial spinning occurred, I found that if I opened the tray and immediately closed it, it would (if done fast enough) boot from the disk. This was too annoying, so I pulled the drive and replaced it with a Pioneer DVD±RW drive.

Booting from the optical drive functioned normally after that. ' I seem to remember that these do not support 16:9 monitors. Is there anything to this?'

No, that isn't true. The B&W G3 sitting next to my desk has the same ATI Radeon 7000 Mac Edition (32 MBs, VGA/DVI/S-Video ports). I use a 19' (16:9 aspect ratio) display with an optimal resolution/refresh rate setting of 1440x900 @ 60Hz. In the Monitors control panel, you may need to select 'Show all resolutions,' in order to set it correctly. My other Macs with a Radeon 7000 card have the 'PC' versions (32 & 64 MBs, VGA port) that were manufactured by ATI, and not by others ('Powered by ATI'). I flashed the EEPROM in those cards to make them Mac-compatible and all support a 16:9 aspect ratio.

Even when booted from a utility or installer disk, the display should work - although not at the optimal settings. I'd suggest checking the gold-plated pins on both edges of the graphics card. If you see any discoloration/oxidization, gently scrub them with a soft, white eraser. Be sure to blow off any eraser shavings, before reinstalling the card. Additionally, if you just acquired this G3 and it has been sitting in storage for a while, the motherboard's internal 3.6-volt, ½AA lithium battery may likely be very weak or dead. Replacing it can avoid some common startup issues.

Forgot to mention: if you opt to go with the Radeon 9200, there was a glitch somewhere between ATI video drivers pre-installed with the OS and the R9200 that only affected OS9. We had to complete remove all prior ATI extensions from teh OS9 system folder, then reinstall them from the CD that came with the 9200, before the card would work in OS9. No such issues with OSX, however. I have a Beige G3 that started with its built-in Rage Pro with 6MB VRAM, then got an ATI Rage Orion 16MB card. Later I scored an original Radeon ME 32MB card (much faster than the later 7000). It finally ended up with the R9200 128MB card. The latter was pretty neat but did not support Quartz Extreme under OSX, meaing 3D performance was smokin' but simple 2D things like dragging a window were choppy.

Well this is the project from. I will make this work if it's the last thing I do.

Different logic board. Different front panel board.

Different CD drive. 2 graphic 7000 cards. Cleaned the contacts on the graphics cards and the memory.

Xerox wc 3220 driver for mac. Firmware for the WorkCentre 3220. Utilize this file for upgrading firmware using the direct USB printer connection. This.zip file contains machine firmware, release notes and installation instructions. This website also provides Xerox 3220 driver for Windows and Xerox 3220 driver for Mac. It also supports to solve your problem about how to install the Xerox WorkCentre 3220 printer driver. Driversolve.com will give you secure driver and Xerox 3220 driver update.

New pram battery (old one measured 3.6v but replaced anyway). Unable to boot off a 10.4 install CD holding the C key down or the option key. Zapping Pram with no change. Monitor a 23' ACD LCD (aluminum bezel) continues to 3 short flashes after the 9.2 splash screen. Monitor works fine w/ a G5. 3 short flashes mean an unsupported resolution was encountered.

Anything I'm overlooking? Thanks again for your help.

Ken Also before I swapped everything out I tried plugging the CD drive into one of the HD cables. Message was edited by: sgginc. ' Unable to boot off a 10.4 install CD holding the C key down or the option key. Is this a retail (universal) 10.4 installer disk (black with a large ' X' across it)?

That's what you need, because a Restore disk for another model Mac (especially Intel-based) won't boot your G3. Also, keyboard shortcuts for booting from the optical drive can depend on the compatibility of the specific optical drive installed.

If the drive has been changed, a third-party drive may not be recognized for booting purposes. ' I tried plugging the CD drive into one of the HD cables.' I assume that you plugged the optical drive into the unused connector on the hard drive's ribbon cable. Was the hard drive left connected to the ribbon cable or did you disconnect it? If both the hard drive and optical drive occupied the same ribbon cable, the drive configuration jumpers would have needed to be changed.

The hard drive would need to be set as 'Master' or 'Master with Slave Present,' and the optical drive would have to be set as 'Slave.' The B&W G3s don't support the Cable Select setting. When you acquired this B&W G3, did the (OS 9.2.x) hard drive successfully boot the computer with the original graphics card installed, or did you buy it without an installed graphics card? The OSX install CD was a retail (black) one. I also tried both 10.3 and 9.2 retail install disks. At one point the CD seemed to go through the activity of booting (activity light and noises) but the screen was black with not even the power light lit on the monitor.

All other times it spun up, blinked a few times then stopped. The time it went through the blinking and spinning of booting it was with a new EIDE cable. I noticed the original cable had pinholes in it. I tried the CD drive by itself on both the motherhoard connectors (jumper on CD set to master). I also tried it with the HD with it set to slave (HD set to master).

I'm thinking this is a cable issue. But with new EIDE cables to the HD and optical it still is a no go. I'm going to lay the motherboard and all components out on a desk and use an OCZ ATX power supply I have. However when I first got the G3 and it wouldn't power on I plugged the OCZ into the motherboard and HD. It still would not power on.

Then I discovered the two buttons on the LB and after pressing them it started OK with the original PS. It usually starts OK now with the front button. I also have a DVI to ACD Apple converter and an ACD display. It shows a splash screen very distorted then goes black. Any other thoughts?

Thanks again for trying. Ken 'Also, keyboard shortcuts for booting from the optical drive can depend on the compatibility of the specific optical drive installed. If the drive has been changed, a third-party drive may not be recognized for booting purposes.'

I'll try the original drive again and report back. ' I'm going to lay the motherboard and all components out on a desk and use an OCZ ATX power supply I have. However when I first got the G3 and it wouldn't power on.

I plugged the OCZ into the motherboard and HD. It still would not power on.' Although the B&W G3's power supply looks identical to an ATX supply, there is an important difference. On an ATX P-S, pin #18 provides -5v, whereas pin #18 on the G3's power supply is a ground. Those who wanted something more powerful than the Apple/OEM 200w power supply often installed an ATX P-S and either modified the existing wiring harness (cutting conductor #18 about 3' from the connector and looping it around to splice to another ground), or did the same mod to an ATX P-S extension cable. The latter method keeps from voiding the warranty on a new power supply.

Additionally, the large chassis fan needs to have its small connector adapted to fit an unused molex power connector on the ATX P-S. I used a small connector with twin leads removed from a PC's front panel power or reset switch, which I plugged the fan into, then spliced the two wires into a molex connector. As for third-party replacement optical drives: I upgraded one of my B&W G3s with an LG DVD±RW drive, but it wouldn't boot from installer disks - either from a keyboard shortcut or by changing the startup disk via the control panel. It would spin up and down - then again, as if the disk were a foreign object it had never seen before, but this took so long that the computer finally booted from the hard drive instead.

When the initial spinning occurred, I found that if I opened the tray and immediately closed it, it would (if done fast enough) boot from the disk. This was too annoying, so I pulled the drive and replaced it with a Pioneer DVD±RW drive. Booting from the optical drive functioned normally after that.

' What model is the Pioneer DVD±RW drive?' It has been a while since I bought them, but it's the (now-discontinued) Pioneer 16x DVD±RW drive (model ). You can always check ebay for a used one or a seller with 'new' Old Stock.

I wouldn't pay a fortune for it. After the 18x model, Pioneer and Asus formed a partnership, wherein Asus began manufacturing 'Pioneer' optical drives (not sure about the high-end Blu-Ray Pioneer drive). Asus continued using the familiar Pioneer faceplate, but one noticeable difference was that the manual eject access hole was moved to the right side. I think the older drives manufactured by Pioneer were of a better quality, and the Apple 'SuperDrive' DVD burners were also Pioneer drives. Pioneer seemed to be the most Mac-compatible of third-party drives.

Does your G3 have the second revision motherboard with the corrected IDE controller? Apple Footer. This site contains user submitted content, comments and opinions and is for informational purposes only.
